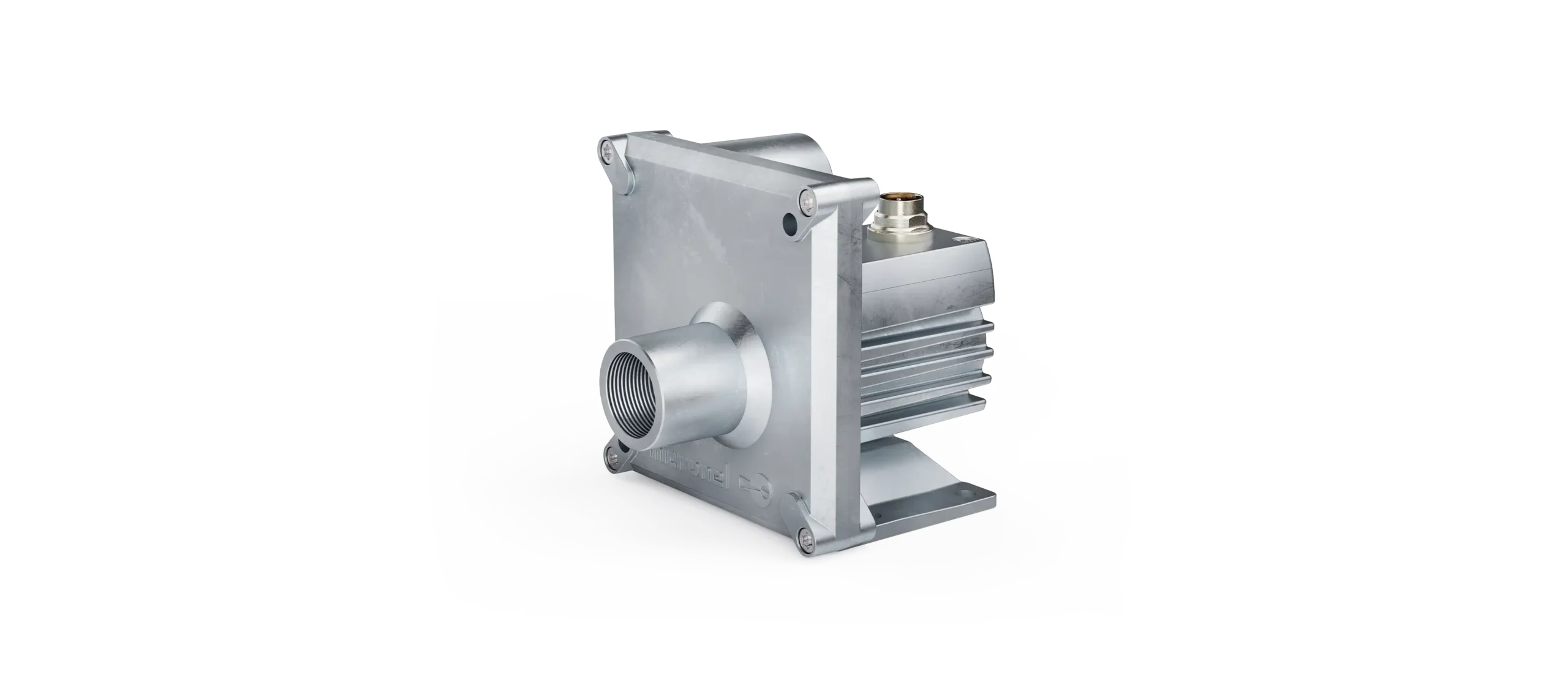

Micronel Radial Blower U100UL-024KA-4

1 / 3

The industrial power horse

This ruggedized and IP67 proof, versatile 24 VDC blower offers standardized G 3/4" screw tubing connection for pressure and vacuum applications in super harsh, industrial environments. The integrated brushless driver provides set-speed input and tacho output. For the M16 cable connector we offer pre-assembled cables in various configurations.

Units for Pressure / Flow Rate

Key Features

Static Pressure 11400 Pa
Freeflow 865 l/min
Size 106 x 106mm
Voltage 24 VDC
Power Consumption 161 W
Electronic Motor Diver Integrated
Med. Breathing No
O2 Resistance Ambient Air (21%)
Acceleration Low

Downloads

You can download the technical documents and operating manual. If you have any further questions, please do not hesitate to contact us.

Dimensionen in mm

Accessories

Suitable accessories for our fans and blowers.

Read More

Download Catalogue pdf, 795.88 KB

Typical Applications

This product is used in the following applications.
