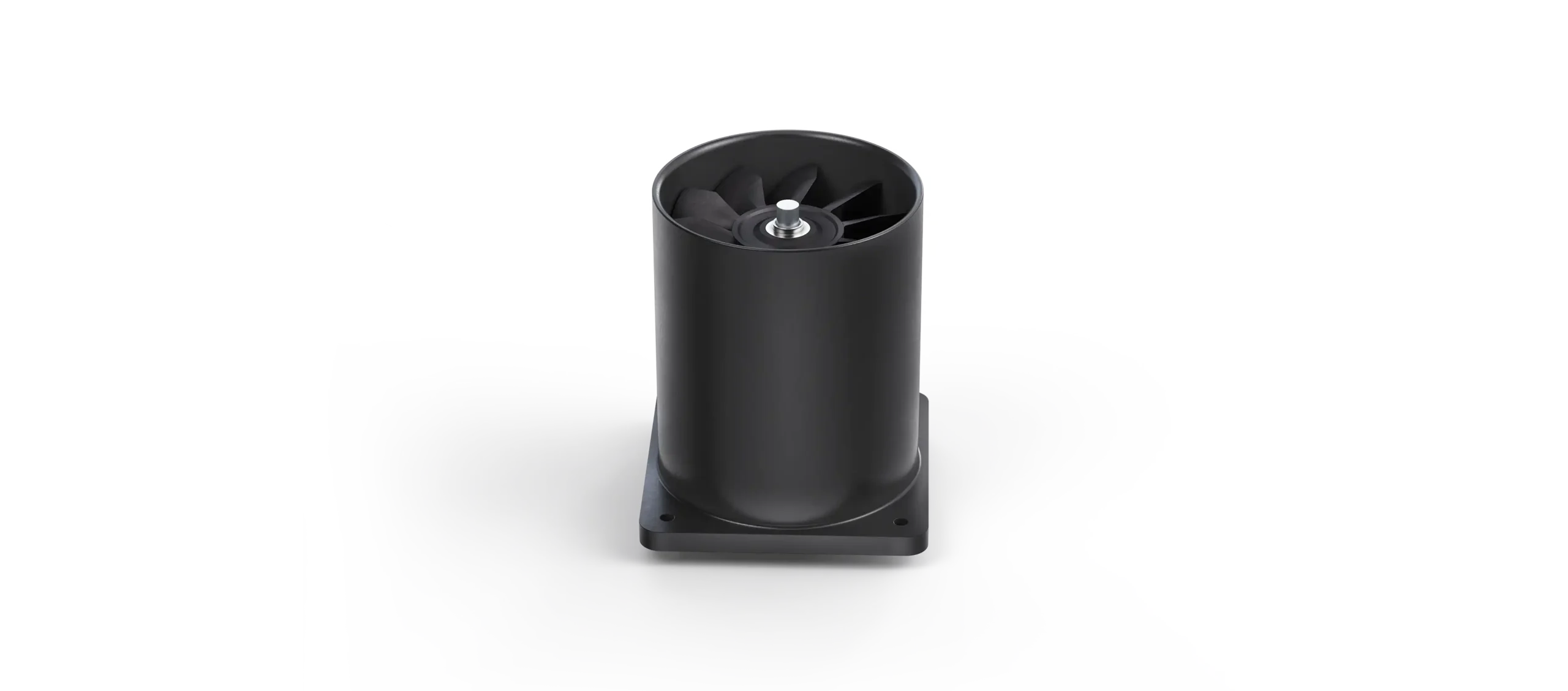

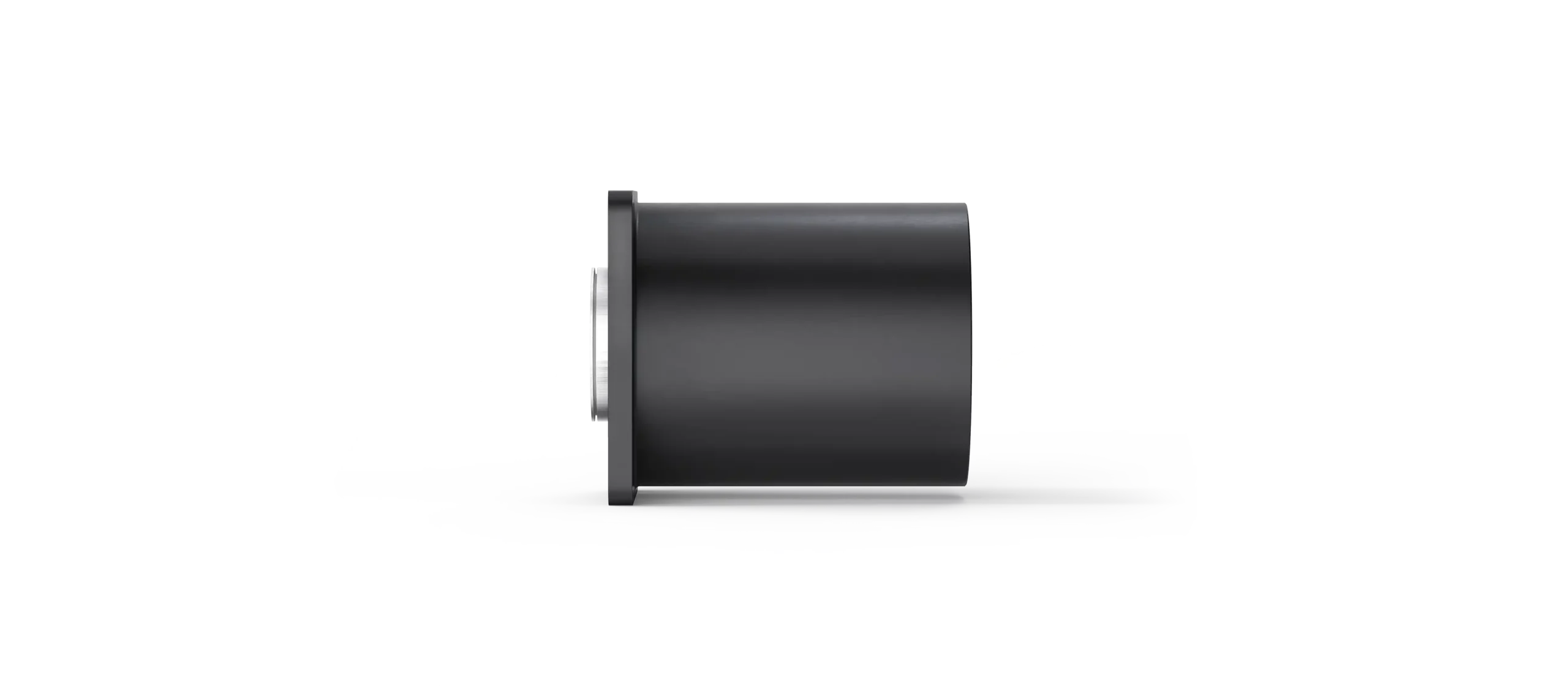

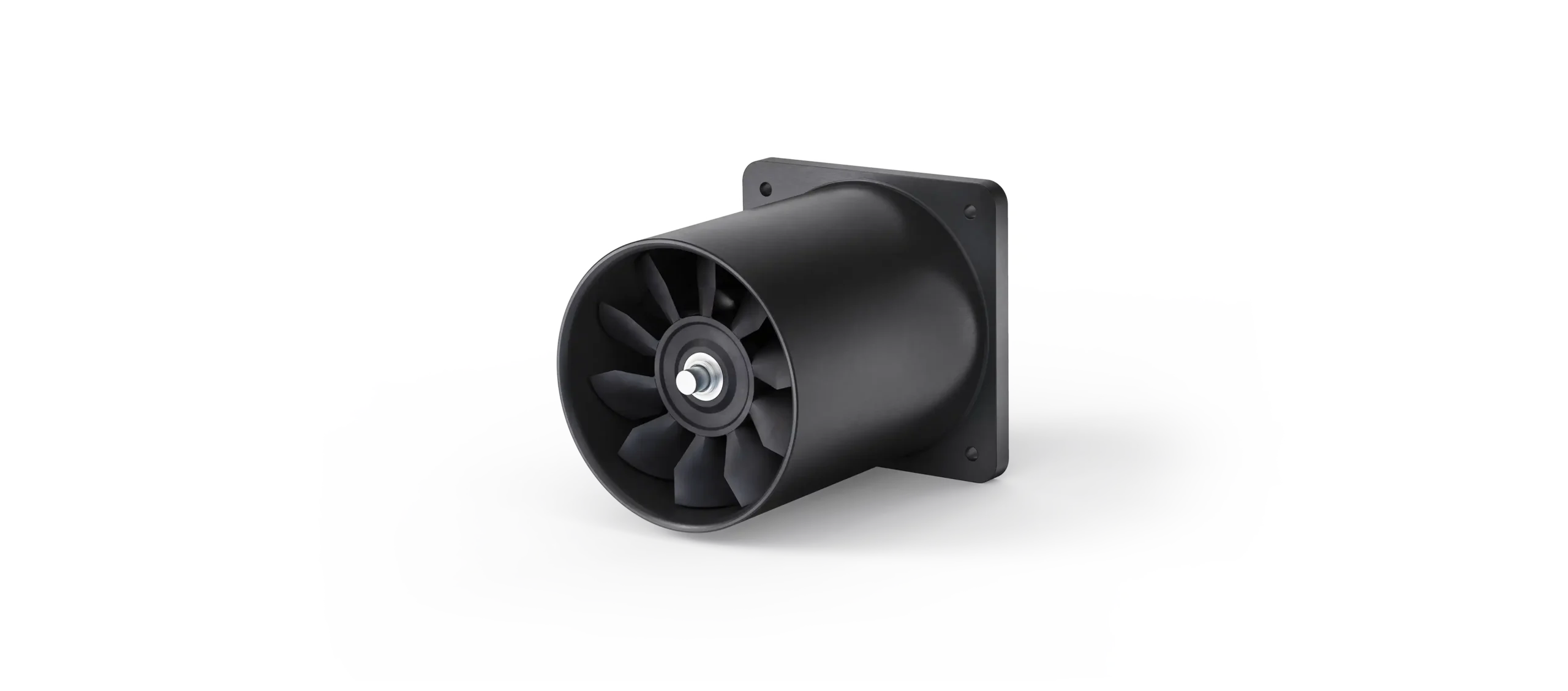

Micronel Tube Fan D483P-012KM-4 (Option)

1 / 3

Compact, powerful, cost effective

In contrast to the Flat Fans, the Micronel Tube Fans offer increased pressure performance while still maintaining a high volume flow. They all feature extremely quiet and efficient operation while offering extreme reliability and life expectancy. This article is an "option with flange at outlet " based on article D481P-012KM-4.

Pa – l/min mbar – m³/h inH₂O – cfm

Key Features

Static Pressure 890 Pa

Freeflow 1060 l/min

Size Ø 48 mm

Voltage 12 VDC

Power Consumption 19.1 W

Electronic Motor Diver Integrated

Med. Breathing No

O2 Resistance Ambient Air (21%)

Acceleration Low
