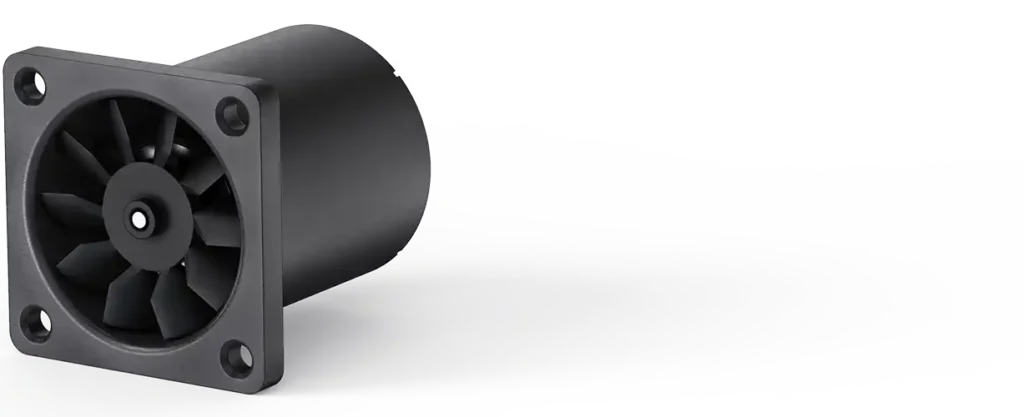

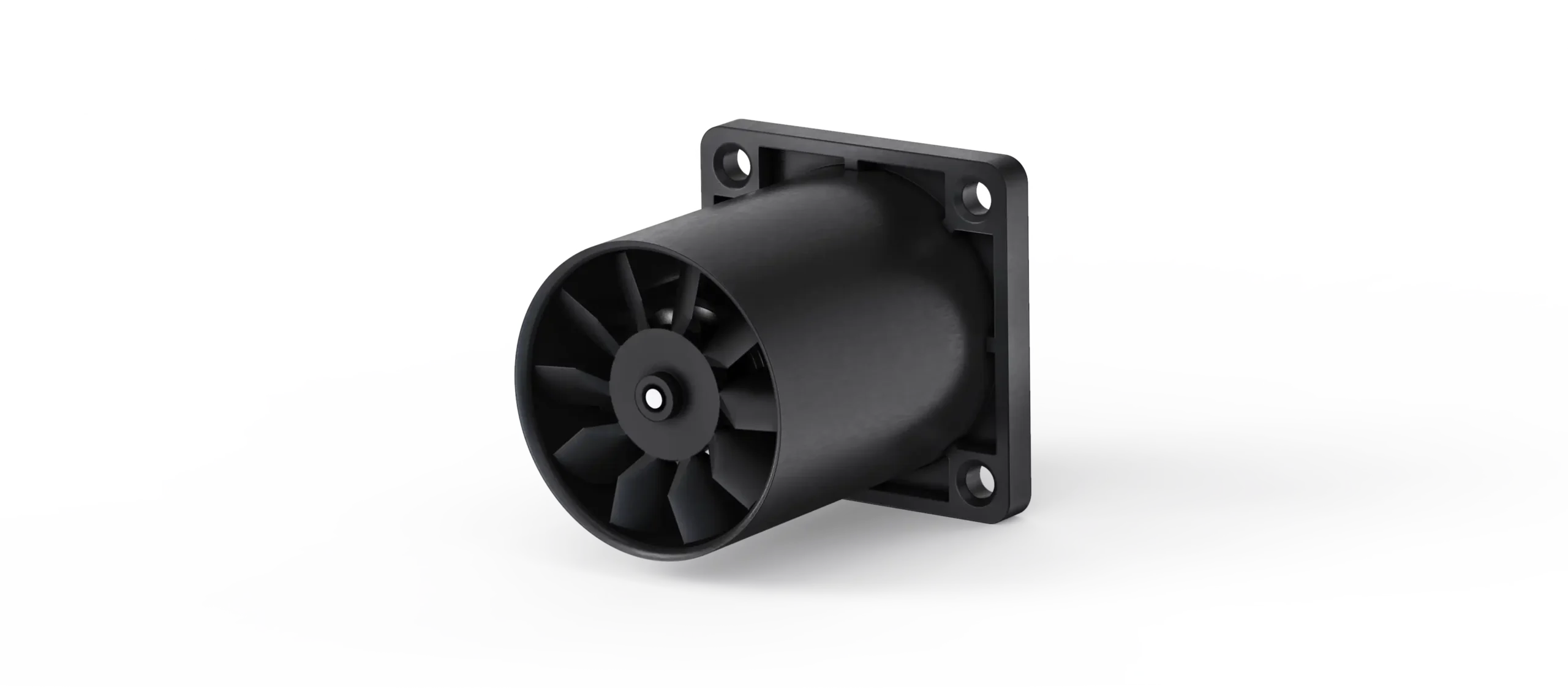

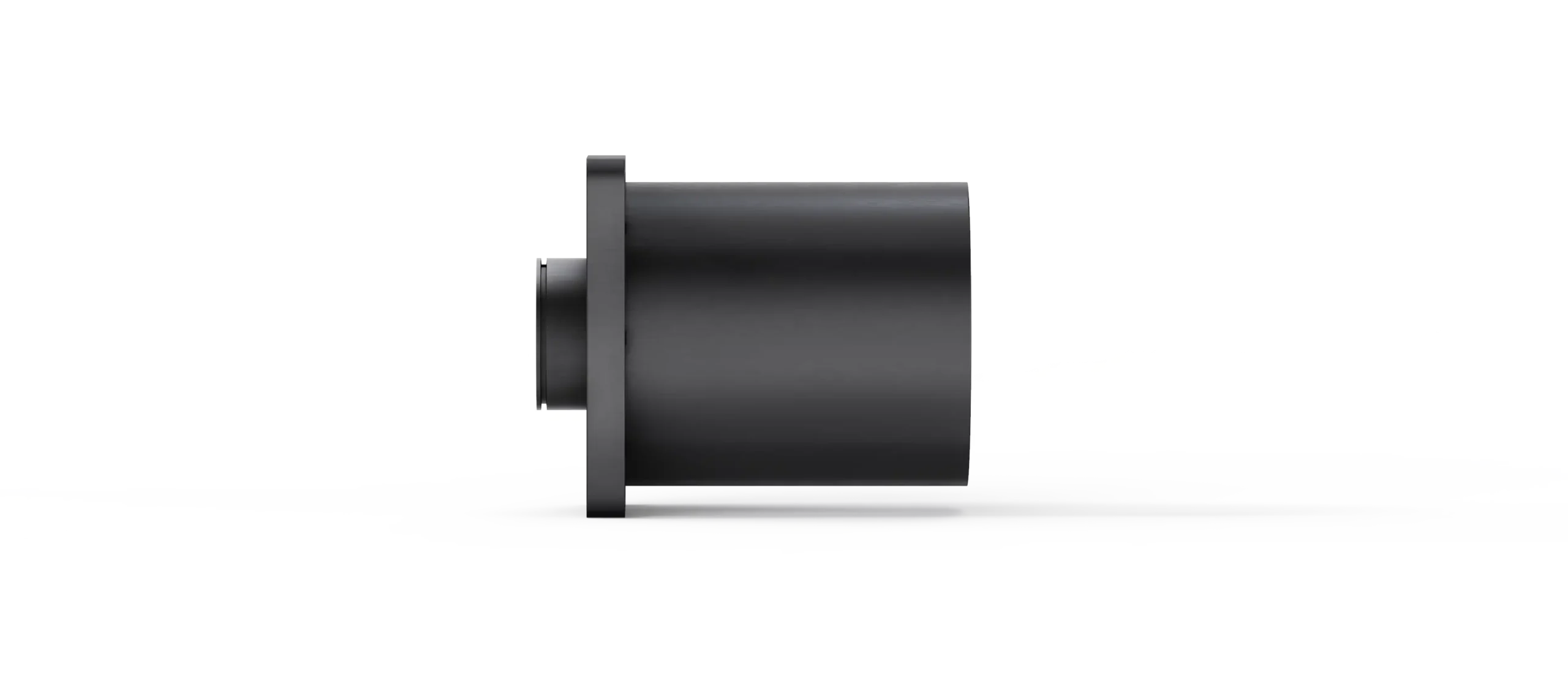

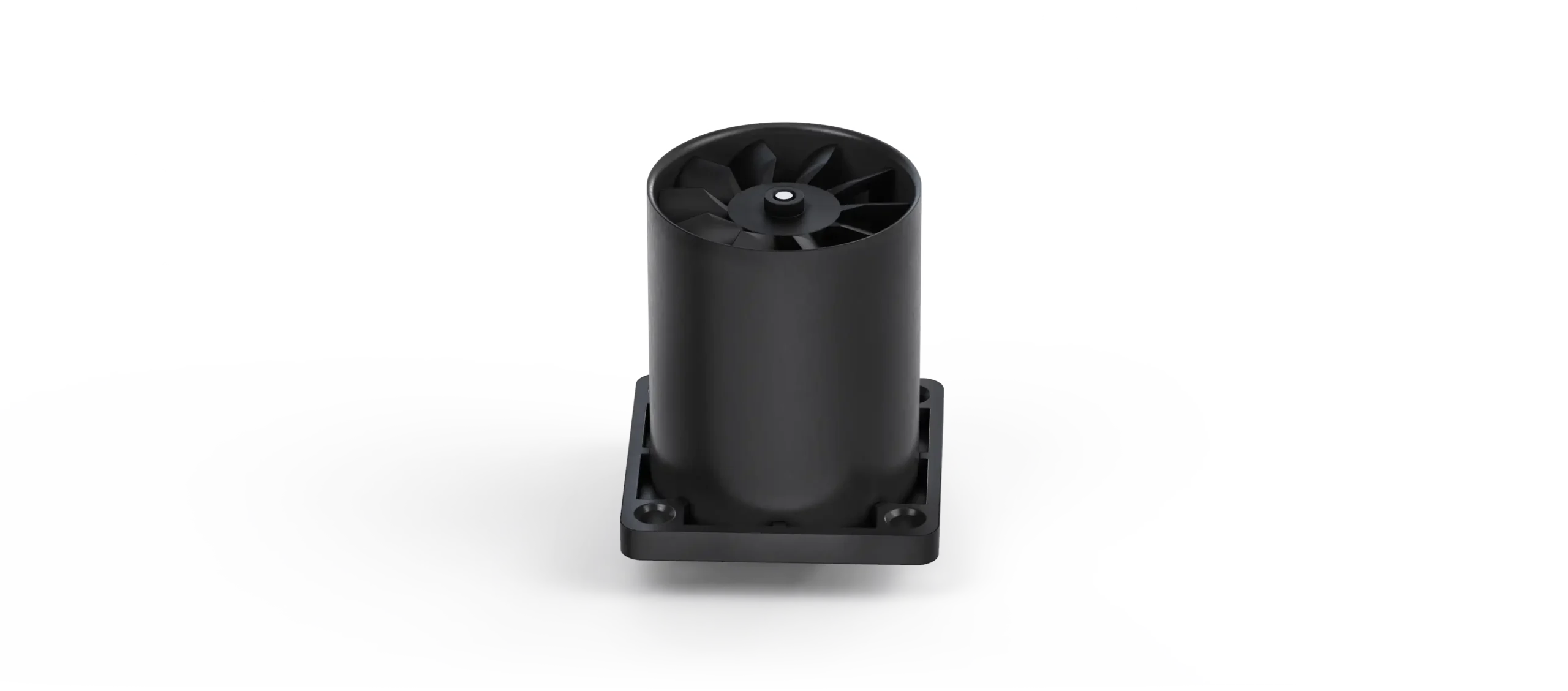

Micronel Tube Fan D243P-006KH-4 (Option)
Super compact, powerful, cost-effective

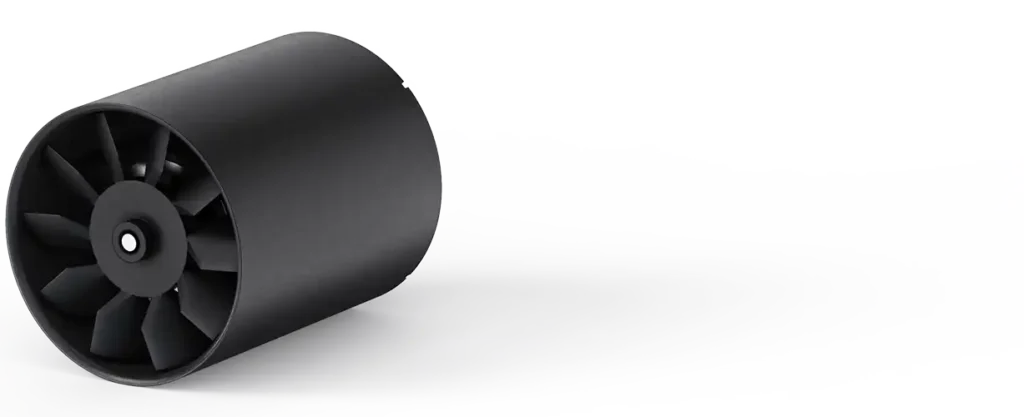

In contrast to the Flat Fans, the Micronel Tube Fans offer increased pressure performance while still maintaining a high volume flow. They all feature extremely quiet and efficient operation while offering extreme reliability and life expectancy. This article is an "option with flange at outlet " based on article D241P-006KH-4.
Units for Pressure / Flow Rate
Key Features
Static Pressure 282 Pa
Freeflow 121 l/min
Size Ø 24 mm
Voltage 6 VDC
Power Consumption 1.68 W
Electronic Motor Diver Integrated
Med. Breathing No
O2 Resistance Ambient Air (21%)
Acceleration Low
Options
Micronel Tube Fan
D243P-006KH-4 (Option)
