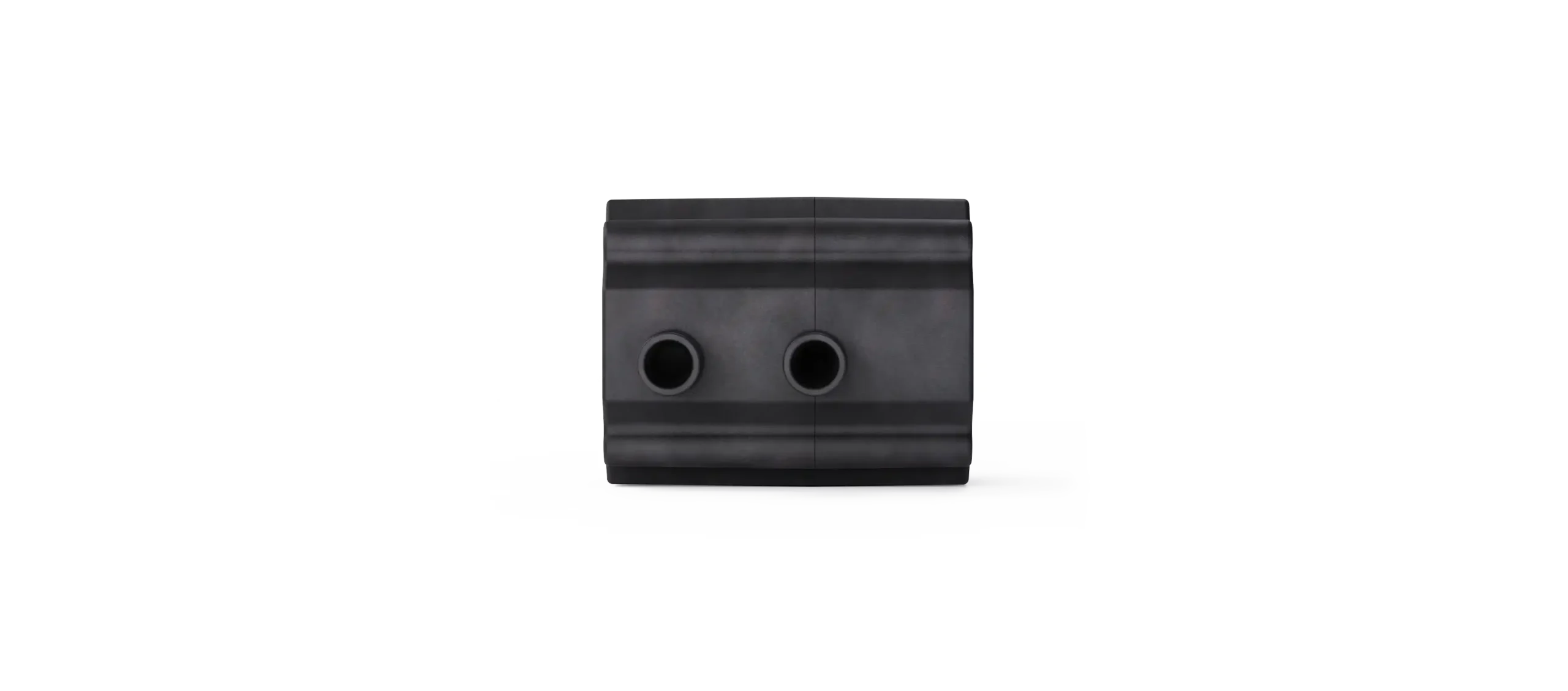

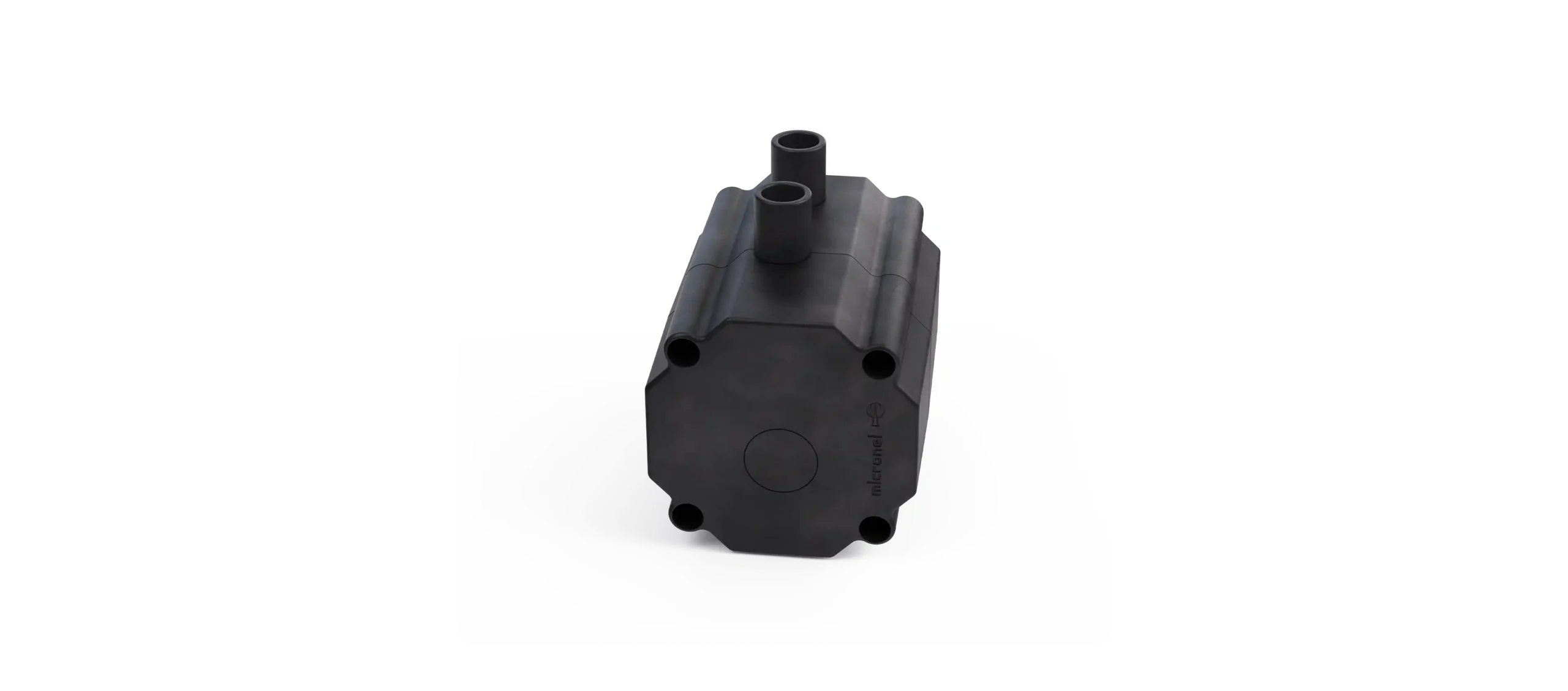

Micronel Radial Blower Y133X-024K1-5
Silencer box, U65H4-024KX-6 integrated
The silencer box comes pre-assembled with an integrated U65H4-024KX-6. The unit has been designed for evaluation and test purposes supporting the customer's design cycles and it is not available for series production
Units for Pressure / Flow Rate
Key Features
Static Pressure 7300 Pa
Freeflow 330 l/min
Size Ø 65 mm
Voltage 18 VDC
Power Consumption 41 W
Electronic Motor Diver Not included
Med. Breathing Yes
O2 Resistance 100%
Acceleration Mid
Micronel Radial Blower
Y133X-024K1-5
